Vital Role of Lithium-Ion Battery Vent Disks
- Baba Mulani
- Mar 9, 2023
- 2 min read
Think of a lithium-ion battery as a miniature energy factory. Inside this factory, various components work together in perfect harmony to convert chemical energy into electrical energy. While each component plays a crucial role, there's one that doesn't often get the recognition it deserves, i.e., the 'vent disk'.
Built inside the cell casing, the vent disk might be small and unnoticeable, but it carries a critical responsibility for the safety and performance of the battery. It's designed to respond to an unusual pressure buildup within the cell by providing a controlled pathway for gases to escape. In other words, it's the pressure relief valve of the battery, helping to prevent catastrophic failure known as a thermal runaway.

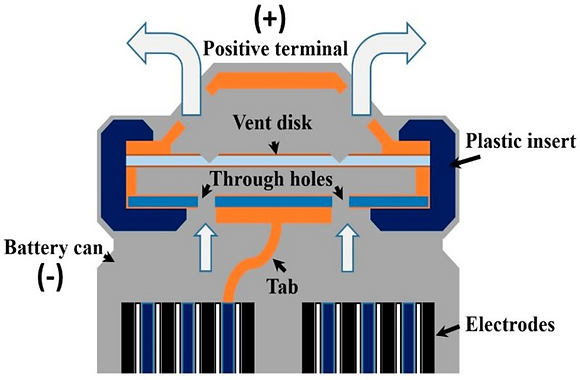

Construction of Lithium-Ion Cell Vent Disk:
The material choice for these vent disks is pivotal for their functionality. They are commonly made of aluminum or stainless steel due to their robust nature and resilience to the harsh conditions inside the battery cell. Most vent disks have two main sections: a scored section, which is the weaker part that ruptures when pressure builds, and a bridge section that holds the disk in place.
As pressure builds, the scored section of the vent disk ruptures first, allowing gases to escape and thereby preventing the cell from rupturing explosively. The bridge section, meanwhile, is engineered to stay intact longer, maintaining the integrity of the cell for as long as possible.
The Technical Challenge: Perfectly Timing the Vent:
The engineering challenge lies in determining the precise moment and the appropriate pressure level at which the vent disk should open. If the vent opens too early, it could hamper the performance of the battery by letting out gases that contribute to the cell's energy output. If it opens too late, the cell might explode due to excessive pressure.
This balancing act is achieved through meticulous design and rigorous testing, considering various factors like material choice, disk thickness, and scoring pattern. All these elements interplay to define the pressure threshold at which the vent disk will rupture.
Just like a symphony is not defined by a single note but by the harmony of all instruments, the power and safety of lithium-ion batteries lie in the sum of all parts. And the vent disk, though undoubtedly important, plays its part to perfection.
